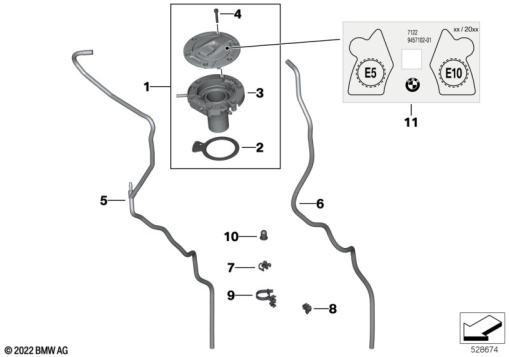

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 8 531 632 | TANK LID | - | |
16 11 8 529 312 | FILLER CAPAlternative for position 1 | - | ||
| 2 | 16 11 8 541 826 | FILLER TUBE GASKET | - | |
| 3 | 16 11 8 541 827 | FILLER TUBE | - | |
| 4 | 07 12 9 904 329 | TORX BOLT - M5X28-A2-70 | - | |
| 6 | 16 13 8 534 371 | HOSE | - | |
| 7 | 11 65 7 599 309 | HOSE CLAMP | - | |
| 8 | 32 73 1 465 257 | CABLE CLAMP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
