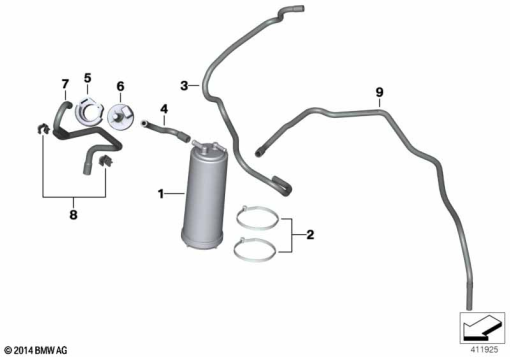

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 13 7 727 387 | ACTIVATED CHARCOAL FILTER | - | |
| 2 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - | |
| 3 | 16 13 7 727 393 | HOSE - TANK-AKF | - | |
16135B40E14 | HOSE - TANK-AKFAlternative for position 3 | - | ||
| 4 | 16 13 8 485 698 | HOSE - TEV-AKF | - | |
16135B40E15 | HOSE LINE - TEV-AKFAlternative for position 4 | - | ||
| 5 | 16 13 8 485 697 | BRACKET VENTILATION VALVE | - | |
| 6 | 16 13 8 567 224 | FUEL TANK BREATHER VALVE | - | |
| 7 | 16 13 8 485 699 | HOSE - TEV-ZYL.KOPF | - | |
16135B40E16 | HOSE LINE - TEV-ZYL.KOPFAlternative for position 7 | - | ||
| 8 | 11 15 7 545 772 | HOLDER | - | |
| 9 | 16 13 7 727 433 | HOSE FOR ACTIVATED CHARCOAL FILTER VENT | - |
