R1250GS 21 (K50) | Fuel Preparation

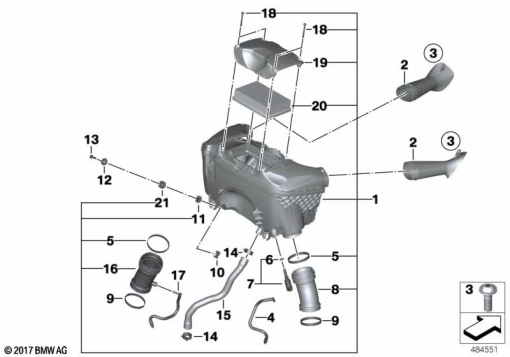

INTAKE SILENCER / FILTER CARTRIDGE INTAKE SILENCER / FILTER CART
Diagram #13_1511 | 19 parts
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 8 567 190 | INTAKE MUFFLER | - | |
| 2 | 13 71 7 726 801 | INTAKE SNORKEL, LEFT | - | |
13 71 7 726 802 | INTAKE SNORKEL, RIGHTAlternative for position 2 | - | ||
| 3 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | - | |
| 5 | 13 71 7 672 313 | MUFFLER CLAMP - D=72MM | - | |
| 6 | 13 62 1 743 299 | O-RING - 8X3 | - | |
| 8 | 13 71 8 567 194 | SUCTION PIPE RIGHT | - | |
| 9 | 13 71 7 728 769 | MUFFLER CLAMP - Ø 68.0 | - | |
| 10 | 07 14 7 693 887 | C-CLIP NUT - M6 | - | |
| 11 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 12 | 07 14 9 151 606 | WASHER - 6,4-25-1,5MM | - | |
| 13 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 14 | 11 15 7 679 174 | HOSE CLAMP - D=28MM | - | |
| 15 | 11 15 8 522 029 | HOSE, POSITIVE CRANKCASE VENTILATION | - | |
| 16 | 13 71 8 567 193 | SUCTION PIPE LEFT | - | |
| 18 | 13 71 9 907 858 | TORX SCREW - M5X50 | - | |
| 19 | 13 71 7 726 794 | SERVICE COVER | - | |
| 20 | 13 72 7 726 799 | AIR FILTER ELEMENT | - | |
| 21 | 46 63 1 451 277 | RUBBER GROMMET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
