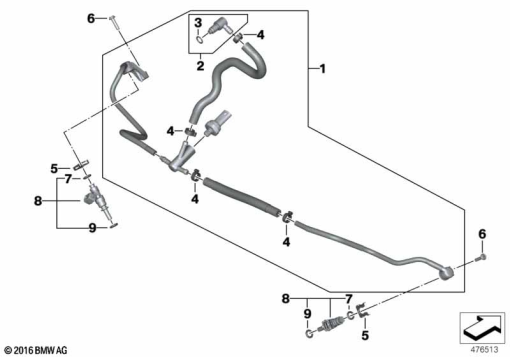

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 53 9 829 189 | FUEL DISTRIBUTOR (from 08/20) | - | |
| 2 | 13 53 8 558 301 | QUICK-RELEASE COUPLING - 90° | - | |
16 14 9 829 217 | QUICK-RELEASE COUPLING - 90°Alternative for position 2 | - | ||
| 4 | 16 12 1 177 210 | HOSE CLAMP - 12,3-14,3 | - | |
| 5 | 13 54 8 552 534 | SPRING CLIP | - | |
| 6 | 07 12 9 907 409 | FILLISTER-HEAD SCREW - M5X20 | - | |
| 7 | 13 64 1 437 476 | O-RING - 7,52X3,51 | - | |
| 8 | 13 61 8 567 156 | INJECTION VALVE | - | |
| 9 | 13 64 7 675 557 | O-RING - 8,3X3,05 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
