R1250GS 21 (K50) | Frame, Fairing, Cases

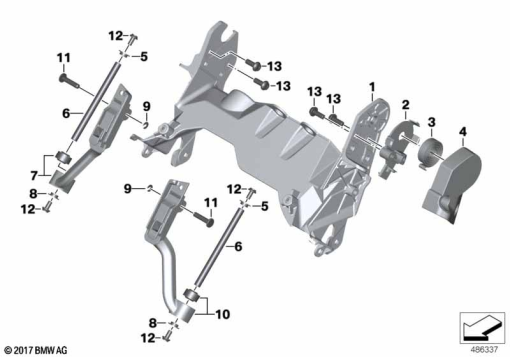

WINDSHIELD ADJUSTMENT
Diagram #46_1538 | 15 parts | 5 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 561 351 | FRONT PANEL CARRIER, CENTER | 1 | |
| 1 | 07 12 9 907 902 | ISA BOLT, SELF-THREADING - M6X16-SP-10.9 | 1 | |
| 1 | 07 12 9 907 933 | ISA BOLT, SELF-THREADING - M6X30-SP-10.9 | 1 | |
| 2 | 46 63 8 551 405 | SUPPORT PLATE FOR COIL SPRING | 1 | |
| 3 | 46 63 8 536 973 | COIL SPRING FOR WINDSHIELD ADJUSTER | 1 | |
| 4 | 46 63 8 551 406 | COVER FOR COIL SPRING | 1 | |
| 5 | 46 63 8 524 971 | BEARING FOR LINEAR GUIDE | 1 | |
| 6 | 46 63 8 528 668 | LINEAR GUIDE | 1 | |
| 7 | 46 63 8 524 932 | WINDSHIELD BRACKET, RIGHT | 1 | |
| 8 | 46 63 8 533 674 | BEARING FOR WINDSHIELD ADJUSTER | 1 | |
| 9 | 07 11 9 907 198 | CIRCLIP - 5-A2 | 1 | |
| 10 | 46 63 8 524 931 | WINDSHIELD BRACKET, LEFT | 1 | |
| 11 | 46 63 8 524 981 | BOLT | 1 | |
| 12 | 07 12 9 907 433 | TORX BOLT - M5X10-8.8-ZNNIV | 1 | |
| 13 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 |
