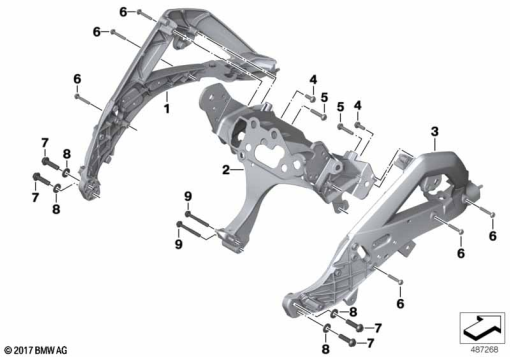

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 9 480 891 | FRONT PANEL CARRIER, LEFT - SILVER | - | |
07 12 9 907 902 | ISA BOLT, SELF-THREADING - M6X16-SP-10.9Alternative for position 1 | - | ||
07 12 9 907 933 | ISA BOLT, SELF-THREADING - M6X30-SP-10.9Alternative for position 1 | - | ||
46 63 9 480 889 | FRONT PANEL CARRIER, LEFT - BLACKAlternative for position 1 | - | ||
07 12 9 907 902 | ISA BOLT, SELF-THREADING - M6X16-SP-10.9Alternative for position 1 | - | ||
07 12 9 907 933 | ISA BOLT, SELF-THREADING - M6X30-SP-10.9Alternative for position 1 | - | ||
| 2 | 46 63 8 561 351 | FRONT PANEL CARRIER, CENTER (from 09/17) | - | |
| - | 07 12 9 907 902 | ISA BOLT, SELF-THREADING - M6X16-SP-10.9 (from 09/17) | - | |
| - | 07 12 9 907 933 | ISA BOLT, SELF-THREADING - M6X30-SP-10.9 (from 09/17) | - | |
| 3 | 46 63 9 480 892 | FRONT PANEL CARRIER,RIGHT - SILVER | - | |
| - | 07 12 9 907 902 | ISA BOLT, SELF-THREADING - M6X16-SP-10.9 | - | |
| - | 07 12 9 907 933 | ISA BOLT, SELF-THREADING - M6X30-SP-10.9 | - | |
| 3 | 46 63 9 480 890 | FRONT PANEL CARRIER,RIGHT - BLACK | - | |
| - | 07 12 9 907 902 | ISA BOLT, SELF-THREADING - M6X16-SP-10.9 | - | |
| - | 07 12 9 907 933 | ISA BOLT, SELF-THREADING - M6X30-SP-10.9 | - | |
| 4 | 07 12 9 907 902 | ISA BOLT, SELF-THREADING - M6X16-SP-10.9 | - | |
| 5 | 07 12 9 907 933 | ISA BOLT, SELF-THREADING - M6X30-SP-10.9 | - | |
| 6 | 07 12 9 907 407 | FILLISTER-HEAD SCREW - M5X30-8.8-ZNNIV | - | |
| 7 | 46 63 9 908 452 | FILLISTER-HEAD SCREW - M8X30-8.8-MK | - | |
| 8 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 9 | 07 12 9 907 824 | ISA SCREW - M8X55-8.8-ZNNIV | - |
