Technical Diagrams
R1250GS 21 (K50)
Engine
PISTON WITH RINGS AND WRISTPIN
R1250GS 21 (K50) | Engine

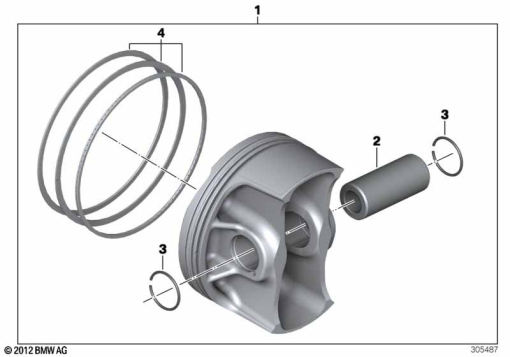

PISTON WITH RINGS AND WRISTPIN
Diagram #11_5152 | 4 parts
26 diagrams in Engine
100%
Download
Parts List (4)
#
Part Number
Description
Qty
1
11 25 8 565 633
PISTON - D=102,5
-
2
11 25 8 565 635
GUDGEON PIN
-
3
11 25 8 530 236
LOCK RING - 22X1,5
-
4
11 25 8 565 669
SET: REPAIR KIT PISTON RINGS
-
