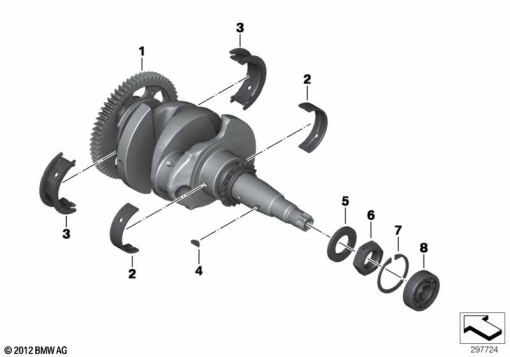

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 8 565 621 | CRANKSHAFT | - | |
| 2 | 11 21 8 530 251 | MAIN BEARING SHELL / YELLOW | - | |
11 21 8 530 252 | MAIN BEARING SHELL / GREENAlternative for position 2 | - | ||
11 21 8 530 253 | MAIN BEARING SHELL / VIOLETAlternative for position 2 | - | ||
| 3 | 11 21 8 530 297 | GUIDE-BEARING SHELL YELLOW | - | |
11 21 8 530 298 | GUIDE-BEARING SHELL GREENAlternative for position 3 | - | ||
11 21 8 530 299 | GUIDE BEARING SHELL VIOLETAlternative for position 3 | - | ||
| 4 | 07 11 9 951 453 | WOODRUFF KEY - 4X5 | - | |
| 5 | 07 11 9 906 682 | WASHER | - | |
| 6 | 11 21 8 530 247 | NUT - M24X1,5 | - | |
| 7 | 07 11 9 906 808 | LOCK RING - 47X1,75 | - | |
| 8 | 11 21 8 530 244 | CYLINDRICAL ROLLER BEARING,RADIAL - 20X47X14 | - |
