R1250GS 21 (K50) | Electrical System

STARTER RELAY

Diagram #61_5404 | 3 parts

100%

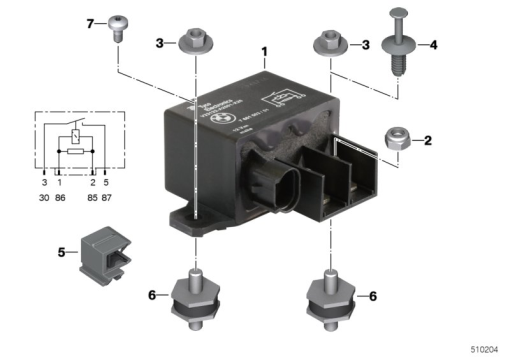

R1250GS 21 (K50) STARTER RELAY exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61 36 8 354 778
STARTER RELAY1
2
07 14 7 575 163
SELF-LOCKING HEX NUT - M6 ZNNIV SI1
5
61 13 8 535 878
PLUG-IN CONNECTION BRACKET1
