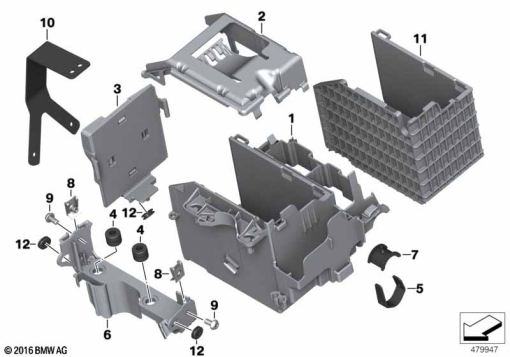

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 8 522 872 | BATTERY TRAY - EVO | 1 | |
| 2 | 61 21 8 522 874 | BATTERY TRAY, UPPER SECTION - EVO | 1 | |
| 3 | 61 21 8 522 875 | SUPPORTING PLATE - EVO | 1 | |
| 4 | 62 11 7 663 112 | RUBBER GROMMET | 1 | |
| 5 | 61 21 8 533 311 | RUBBER TENSION STRAP | 1 | |
| 6 | 61 21 8 533 312 | CROSS BRACE | 1 | |
| 7 | 61 31 7 675 468 | RUBBER ELEMENT | 1 | |
| 8 | 07 14 7 286 036 | C-CLIP NUT, SELF-LOCKING - M6-ZNS3 | 1 | |
| 9 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | 1 | |
| 10 | 61 21 8 525 794 | RUBBER TENSION STRAP | 1 | |
| 11 | 61 21 8 522 877 | THERMAL PROTECTION | 1 | |
| 12 | 61 13 8 532 186 | RUBBER GROMMET | 1 |
