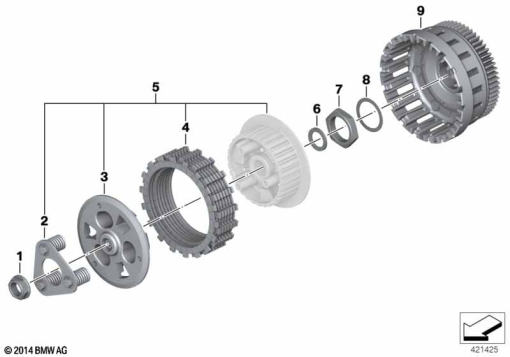

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 8 529 424 | NUT - M20X1,5 | - | |
| 2 | 21 21 8 529 447 | SET RETAINING PLATE WITH CLUTCH SPRINGS | - | |
| 3 | 21 21 8 529 449 | PRESSURE PLATE (to 06/22) | - | |
21215A6CEF6 | PRESSURE PLATEAlternative for position 3 | - | ||
| 4 | 21 21 8 529 448 | LAMELLAR PACKAGE | - | |
| 5 | 21 21 8 529 450 | CLUTCH PACKAGE (to 06/22) | - | |
21215A6F9A8 | CLUTCH PACKAGEAlternative for position 5 | - | ||
| 6 | 21 21 8 548 392 | DRIVING PLATE | - | |
| 7 | 21 21 8 555 833 | NUT - M36X1,5 MKL | - | |
| - | 21 21 8 529 921 | WASHER - 36,5X46X1 | - | |
| 8 | 21 21 8 529 921 | WASHER - 36,5X46X1 | - | |
| 9 | 21 21 8 543 677 | COUPLNG CAP - GROß | - | |
21 21 8 543 676 | COUPLNG CAP - MITTELAlternative for position 9 | - | ||
21 21 8 543 675 | COUPLNG CAP - KLEINAlternative for position 9 | - |
