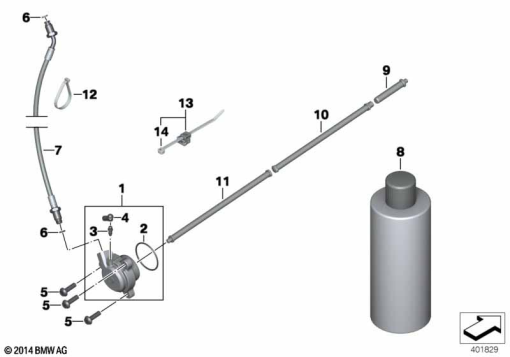

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 52 8 525 828 | CLUTCH SLAVE CYLINDER | 1 | |
| 2 | 21 52 7 714 159 | O-RING - 38X2 | 1 | |
| 3 | 32 72 7 695 221 | VENT SCREW - M5X1 | 1 | |
| 4 | 32 72 7 695 222 | DUST CAP | 1 | |
| 5 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 6 | 11 31 7 711 269 | O-RING - 5,5X1,5 | 1 | |
| 7 | 21 52 8 524 925 | CLUTCH CABLE, INPUT/OUTPUT CYLINDER | 1 | |
| 1 | 11 31 7 711 269 | O-RING - 5,5X1,5 | 1 | |
| 8 | 21 52 2 455 540 | TRANSMISSION OIL HYSPIN V10 - 250 ML | 1 | |
| 9 | 21 52 8 550 147 | THRUST ADAPTER - 57,5MM | 1 | |
| 10 | 21 52 8 529 955 | ROD - 187MM | 1 | |
| 11 | 21 52 8 564 185 | 0.14 | 1 | |
| – | 23 00 8 567 243 | 6-SPEED TRANSMISSION SILVER | 1 | |
| – | 23 00 8 567 244 | 6-GEAR TRANSMISSION BLACK | 1 | |
| 12 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 13 | 61 13 9 200 225 | CABLE STRAP WITH BRACKET - L=200MM | 1 | |
| 14 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
