Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 40 9 899 411 | VARIO CASE, LEFT - US / CA | - | |
77 40 9 899 412 | VARIO CASE, RIGHT - US / CAAlternative for position 1 | - | ||
| - | 77 42 8 525 874 | SET: SET OF CASE HOLDERS, VARIO CASES | - | |
| 3 | 51 25 7 698 202 | SET: REP.KIT F LOCK CYLINDER | - | |
| 4 | 77 41 8 568 809 | SIGN MAXIMUM SPEED/PAYLOAD - VARIO-CASE | - | |
| 5 | 63 14 9 899 376 | MOUNT REFLECTOR - US / CA | - | |
63 14 2 305 743 | REFLECTOR, REDAlternative for position 5 | - |

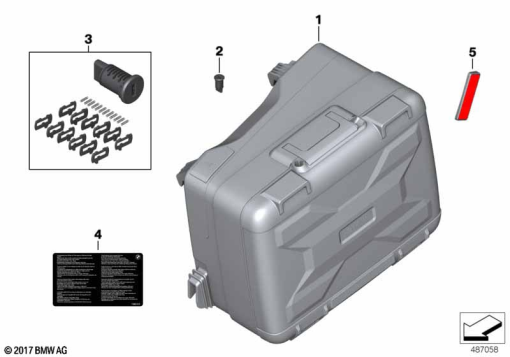

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
