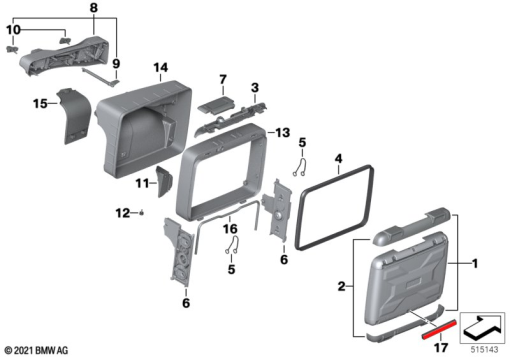

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 43 9 467 682 | CASE LID/TOPCASE LID - US / CA | - | |
| 2 | 46 54 7 677 389 | PROTECTIVE MOULDINGS, TOP | - | |
46 54 9 467 683 | PROTECTIVE MOULDINGS, BOTTOM - US / CAAlternative for position 2 | - | ||
| 3 | 71 60 7 682 774 | LOCK STRIP | - | |
| 4 | 46 54 9 457 451 | GASKET, CASE LID | - | |
| 5 | 77 41 8 523 708 | CATCH | - | |
| 6 | 77 41 8 523 719 | ADJUST PLATE FRONT LEFT | - | |
77 41 8 523 720 | ADJUST PLATE FRONT RIGHTAlternative for position 6 | - | ||
77 41 8 523 721 | ADJUST PLATE REAR LEFTAlternative for position 6 | - | ||
77 41 8 523 722 | ADJUST PLATE REAR RIGHTAlternative for position 6 | - | ||
| 8 | 77 41 8 523 725 | TOPCASE LOCKING MECHANISM, LEFT | - | |
77 41 8 523 726 | TOPCASE LOCKING MECHANISM, RIGHTAlternative for position 8 | - | ||
| 9 | 51 25 7 677 400 | ROTARY RELEASE LEVER, RIGHT/TOP CASE | - | |
71 60 7 707 244 | ROTARY RELEASE LEVER, LEFTAlternative for position 9 | - | ||
| 10 | 77 42 8 540 719 | CASE RETAINER | - | |
| 11 | 77 41 8 523 711 | SUSPENSION POINT, LOWER LEFT | - | |
77 41 8 523 712 | SUSPENSION POINT, LOWER RIGHTAlternative for position 11 | - | ||
| 12 | 46 52 8 536 805 | BUMP STOP - H=15 | - | |
| 13 | 46 54 7 677 402 | ADJUST FRAME | - | |
| 14 | 77 41 8 523 703 | CASE BOTTOM, LEFT | - | |
77 41 8 567 210 | CASE BOTTOM, RIGHTAlternative for position 14 | - | ||
| 15 | 77 42 8 540 718 | SET: HEAT RESISTANT PLATE | - | |
| 16 | 46 54 7 677 404 | ADJUST-LEVER | - | |
| 17 | 63 14 9 899 376 | MOUNT REFLECTOR - US / CA | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
