R1250GS 21 (K50) | Accessories

TOPCASE BOTTOM SECTION TOPCASE 49L

Diagram #77_0868 | 2 parts

100%

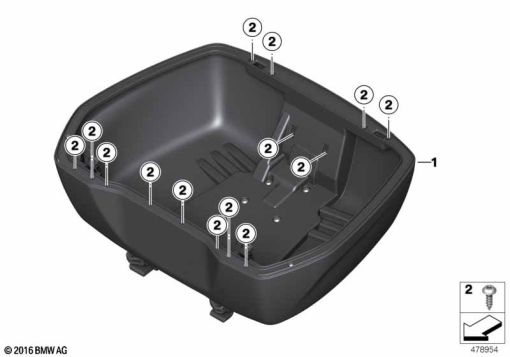

R1250GS 21 (K50) TOPCASE BOTTOM SECTION TOPCASE 49L exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
77 43 8 551 997
TOP CASE BOTTOM SECTION1
2
07 14 7 698 893
SELF TAPPING SCREW - M4X121
