Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 43 9 829 378 | TOP CASE 49L | - | |
| - | 77 44 8 523 743 | SET: KIT FOR TOPCASE MOUNT | - | |
| 2 | 77 43 8 354 934 | OUTER SHELL, TOPCASE COVER - GRANIT-GREY MET | - | |
77 43 8 354 935 | OUTER SHELL, TOPCASE COVER - RACING-REDAlternative for position 2 | - | ||
77 43 8 552 006 | OUTER SHELL, TOPCASE COVER, PRIMEDAlternative for position 2 | - | ||
| 3 | 51 14 8 164 924 | BADGE - D=58MM | - | |
| 6 | 51 25 7 698 202 | SET: REP.KIT F LOCK CYLINDER | - | |
| 7 | 07 14 7 698 893 | SELF TAPPING SCREW - M4X12 | - |

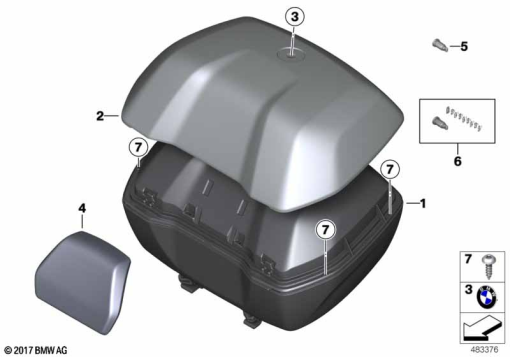

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
