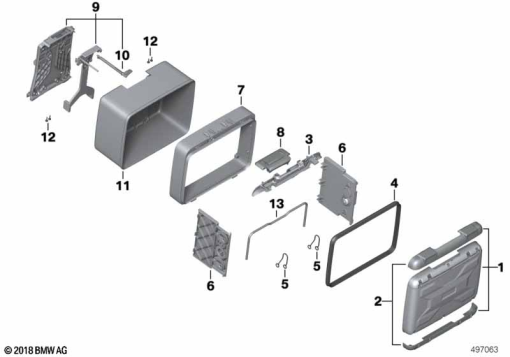

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 43 8 523 727 | CASE LID/TOPCASE LID | - | |
| 2 | 46 54 7 677 389 | PROTECTIVE MOULDINGS, TOP | - | |
46 54 7 677 390 | PROTECTIVE MOULDINGS, BOTTOMAlternative for position 2 | - | ||
| 3 | 71 60 7 682 774 | LOCK STRIP | - | |
| 4 | 46 54 9 457 451 | GASKET, CASE LID | - | |
| 5 | 77 41 8 523 708 | CATCH | - | |
| 6 | 77 41 8 523 723 | ADJUSTMENT PLATE FOR "TOPCASE," LEFT | - | |
77 41 8 523 724 | ADJUSTMENT PLATE FOR "TOPCASE," RIGHTAlternative for position 6 | - | ||
| 7 | 46 54 7 677 402 | ADJUST FRAME | - | |
| 9 | 77 41 8 523 706 | TOP CASE LOCK MECHANISM | - | |
| 10 | 51 25 7 677 400 | ROTARY RELEASE LEVER, RIGHT/TOP CASE | - | |
| 11 | 77 41 8 523 702 | BOTTOM PART F TOP CASE | - | |
| 12 | 52 53 7 703 580 | RUBBER SUPPORT | - | |
| 13 | 46 54 7 677 404 | ADJUST-LEVER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
