R1250GS 21 (K50) | Accessories

INNER POCKET, VARIO CASE/TOPCASE

Diagram #77_0578 | 3 parts

100%

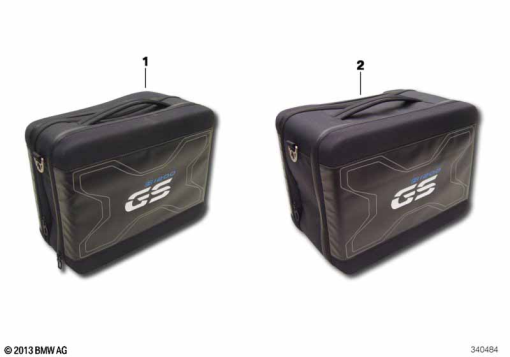

R1250GS 21 (K50) INNER POCKET, VARIO CASE/TOPCASE exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
77 49 8 534 711
INSIDE POCKET FOR VARIO CASE, RIGHT1
1
77 49 8 536 210
INSIDE POCKET FOR VARIO CASE, LEFT1
2
77 49 8 534 712
INNER POCKET FOR VARIO TOP CASE1
