Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 7 673 549 | HANDLE LEFT | - | |
| 2 | 07 11 9 907 438 | CSK.FILLISTER HEAD SREW - M3,5X30 (09/10 to 07/11) | - | |
61 31 8 542 310 | CSK.FILLISTER HEAD SREW - M3,5X30 (from 09/10)Alternative for position 2 | - | ||
| 4 | 61 31 7 673 550 | HANDLE RIGHT | - | |
| 5 | 61 31 7 674 606 | COVER | - | |
| 6 | 61 31 7 678 741 | OVAL HEAD SCREW - M4X30 | - | |
| 7 | 61 31 7 674 609 | PIPE CLAMP | - | |
| 8 | 63 21 7 654 464 | FILLISTER HEAD SCREW - M5X20 | - | |
| 9 | 61 31 7 687 509 | SELF TAPPING SCREW - ISA M4X10 | - | |
61 31 7 687 509 | SELF TAPPING SCREW - ISA M4X10Alternative for position 9 | - |

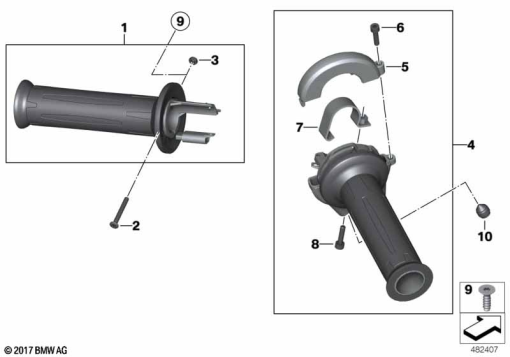

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
