R1200GS 05-07 (K25) | Steering

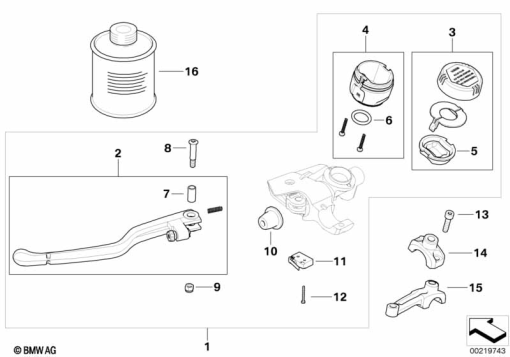

CLUTCH CONTROL ASSEMBLY
Diagram #32_1896 | 17 parts | 3 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 7 728 852 | CLUTCH CONTROL ASSEMBLY - D=13MM | 1 | |
| 2 | 32 72 7 691 637 | CLUTCH LEVER | 1 | |
| 3 | 32 72 7 723 460 | SET: SET OF CAPS, FLUID RESERVOIR, CLUTCH | 1 | |
| 4 | 32 72 7 723 419 | SET: SET, FLUID RESERVOIR FOR CLUTCH, WHITE - TOUR | 1 | |
| 5 | 21 52 7 674 107 | RUBBER BOOT | 1 | |
| 6 | 32 72 7 678 443 | O-RING | 1 | |
| 7 | 32 72 7 673 990 | SLEEVE | 1 | |
| 8 | 32 72 7 673 989 | COUNTERSUNK HEAD SCREW - M5X30 | 1 | |
| 9 | 52 53 7 655 579 | SELF-LOCKING HEX NUT - M5-A2 | 1 | |
| 10 | 32 72 7 673 919 | DUST PROTECTION COLLAR | 1 | |
| 11 | 61 31 7 671 111 | MICROSWITCH | 1 | |
| 1 | 32 72 7 673 996 | GRUB SCREW - M4X8 | 1 | |
| 1 | 32 72 7 675 747 | THRUST ADAPTER | 1 | |
| 13 | 07 12 9 904 792 | ISA SCREW - M5X20 | 1 | |
| 14 | 32 72 7 673 917 | CLAMP WITH MIRROR MOUNT - M5 | 1 | |
| 15 | 32 72 7 664 677 | PIPE CLAMP | 1 | |
| 16 | 21 52 2 455 540 | TRANSMISSION OIL HYSPIN V10 - 250 ML | 1 |
