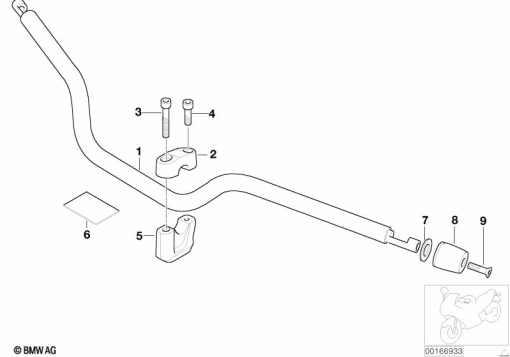

Parts List (5)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 7 674 599 | HANDLEBAR, TUBULAR | - | |
| 2 | 32 71 7 664 356 | CLAMPING SUPPORT - D=28,5MM | - | |
| 4 | 07 12 9 906 204 | ASA-BOLT - M8X30-10.9 | - | |
| 8 | 32 71 7 673 846 | HANDLEBAR VIBRATION ABSORBER - 300G | - | |
| 9 | 32 71 7 717 802 | COUNTERSUNK HEAD SCREW - M12X1,5X80-MKL | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
