R1200GS 05-07 (K25) | Steering

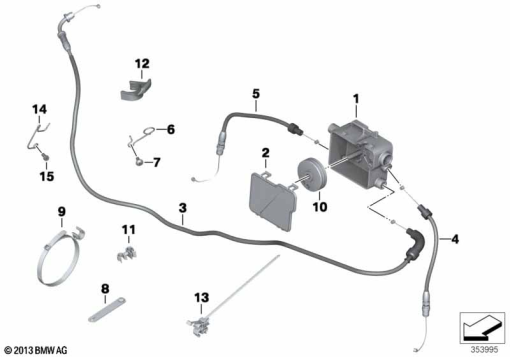

BOWDEN CABLE/CABLE DISTRIBUTOR
Diagram #32_1504 | 10 parts | 5 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 73 7 670 564 | HOUSING FOR BOWDEN CABLE DISTRIBUTOR | 1 | |
| 2 | 32 73 7 670 565 | COVER | 1 | |
| 3 | 32 73 7 670 566 | ACCELERATOR CABLE AT DISTRIBUTOR | 1 | |
| 4 | 32 73 7 670 567 | BOWDEN CABLE, THROTTLE VALVE, LEFT | 1 | |
| 5 | 32 73 7 670 568 | BOWDEN CABLE, THROTTLE VALVE, RIGHT | 1 | |
| 6 | 32 73 7 684 620 | SPACER | 1 | |
| 7 | 06 32 7 651 211 | FILLISTER HEAD SCREW - M5X12-A2-80 | 1 | |
| 8 | 32 73 7 687 119 | RUBBER TENSION STRAP - L=75MM | 1 | |
| 9 | 32 73 7 683 039 | HOSE CLAMP, DOUBLE | 1 | |
| 10 | 32 73 7 669 398 | DOUBLE CABLE PULLEY | 1 |
