R1200GS 05-07 (K25) | Rear Axle & Suspension

BEARINGS, RING GEAR, INTEGRAL ABS 1

Diagram #33_1778 | 30 parts | 1 available in shop

100%

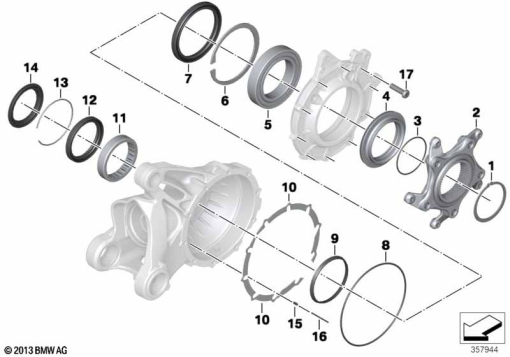

R1200GS 05-07 (K25) BEARINGS, RING GEAR, INTEGRAL ABS 1 exploded view parts diagram

Parts List (30)

#Part NumberDescriptionQty
1
07 11 9 905 076
LOCK RING - 62X2 (to 08/06)1
2
33 11 7 722 831
FLANGE (to 08/06)1
1
33 11 8 521 832
SPACER RING (to 08/06)1
1
07 11 9 907 129
O-RING - 62X2-N-FPM 80 (to 08/06)1
3
07 11 9 907 129
O-RING - 62X2-N-FPM 80 (to 08/06)1
4
33 11 8 521 832
SPACER RING (to 08/06)1
5
33 11 7 720 235
GROOVED BALL BEARING (to 08/06)1
6
07 11 9 904 689
LOCK RING - 100X3 (to 08/06)1
7
33 11 7 679 864
SHAFT SEAL - 80X100X9 (to 08/06)1
8
33 11 7 695 218
O-RING - 138X2,62 (to 08/06)1
9
33 11 7 674 872
ASSEMBLY RING (to 08/06)1
10
33 11 7 690 608
ADJUSTING WASHER - 0,7MM (to 08/06)1
10
33 11 7 690 609
ADJUSTING WASHER - 0,75MM (to 08/06)1
10
33 11 7 690 610
ADJUSTING WASHER - 0,8MM (to 08/06)1
10
33 11 7 690 611
ADJUSTING WASHER - 0,85MM (to 08/06)1
10
33 11 7 690 612
ADJUSTING WASHER - 0,9MM (to 08/06)1
10
33 11 7 690 613
ADJUSTING WASHER - 0,95MM (to 08/06)1
10
33 11 7 690 614
ADJUSTING WASHER - 1,0MM (to 08/06)1
10
33 11 7 690 615
ADJUSTING WASHER - 1,05MM (to 08/06)1
10
33 11 7 690 616
ADJUSTING WASHER - 1,1MM (to 08/06)1
10
33 11 7 690 617
ADJUSTING WASHER - 1,15MM (to 08/06)1
10
33 11 7 690 618
ADJUSTING WASHER - 1,2MM (to 08/06)1
10
33 11 7 690 619
ADJUSTING WASHER - 1,25MM (to 08/06)1
11
33 11 7 674 121
NEEDLE SLEEVE (to 08/06)1
12
33 11 7 722 890
SHAFT SEAL - 59,8X75X8 (to 08/06)1
13
33 11 7 675 132
LOCK RING - 75X2 (to 08/06)1
14
33 11 7 665 055
COVER (to 08/06)1
15
07 11 9 905 584
ROLL PIN - 3,5X8-ST (to 08/06)1
16
07 11 9 905 666
ROLL PIN - 2X36 (to 08/06)1
17
33 11 7 686 682
FILLISTER HEAD SCREW - M8X30 (to 08/06)1
