R1200GS 05-07 (K25) | Rear Axle & Suspension

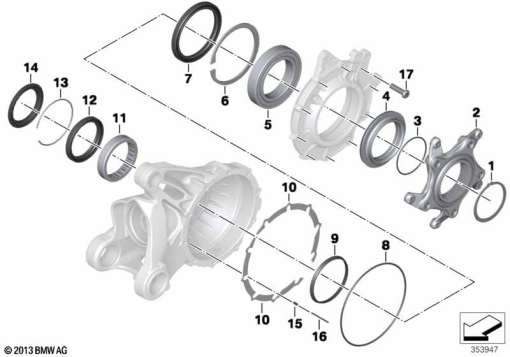

BEARING, RING GEAR, INTEGRAL ABS 2
Diagram #33_1782 | 30 parts | 1 available in shop
100%
Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 905 076 | LOCK RING - 62X2 (08/06 to 04/10) | 1 | |
| 2 | 33 11 7 722 831 | FLANGE (08/06 to 04/10) | 1 | |
| 1 | 33 11 8 521 832 | SPACER RING (08/06 to 04/10) | 1 | |
| 1 | 07 11 9 907 129 | O-RING - 62X2-N-FPM 80 (08/06 to 04/10) | 1 | |
| 3 | 07 11 9 907 129 | O-RING - 62X2-N-FPM 80 (08/06 to 04/10) | 1 | |
| 4 | 33 11 8 521 832 | SPACER RING (08/06 to 04/10) | 1 | |
| 5 | 33 11 7 720 235 | GROOVED BALL BEARING (08/06 to 04/10) | 1 | |
| 6 | 07 11 9 904 689 | LOCK RING - 100X3 (08/06 to 04/10) | 1 | |
| 7 | 33 11 7 679 864 | SHAFT SEAL - 80X100X9 (08/06 to 04/10) | 1 | |
| 8 | 33 11 7 695 218 | O-RING - 138X2,62 (08/06 to 04/10) | 1 | |
| 9 | 33 11 7 674 872 | ASSEMBLY RING (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 608 | ADJUSTING WASHER - 0,7MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 609 | ADJUSTING WASHER - 0,75MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 610 | ADJUSTING WASHER - 0,8MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 611 | ADJUSTING WASHER - 0,85MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 612 | ADJUSTING WASHER - 0,9MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 613 | ADJUSTING WASHER - 0,95MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 614 | ADJUSTING WASHER - 1,0MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 615 | ADJUSTING WASHER - 1,05MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 616 | ADJUSTING WASHER - 1,1MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 617 | ADJUSTING WASHER - 1,15MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 618 | ADJUSTING WASHER - 1,2MM (08/06 to 04/10) | 1 | |
| 10 | 33 11 7 690 619 | ADJUSTING WASHER - 1,25MM (08/06 to 04/10) | 1 | |
| 11 | 33 11 7 674 121 | NEEDLE SLEEVE (08/06 to 04/10) | 1 | |
| 12 | 33 11 7 722 890 | SHAFT SEAL - 59,8X75X8 (08/06 to 04/10) | 1 | |
| 13 | 33 11 7 675 132 | LOCK RING - 75X2 (08/06 to 04/10) | 1 | |
| 14 | 33 11 7 665 055 | COVER (08/06 to 04/10) | 1 | |
| 15 | 07 11 9 905 584 | ROLL PIN - 3,5X8-ST (08/06 to 04/10) | 1 | |
| 16 | 07 11 9 905 666 | ROLL PIN - 2X36 (08/06 to 04/10) | 1 | |
| 17 | 33 11 7 686 682 | FILLISTER HEAD SCREW - M8X30 (08/06 to 04/10) | 1 |
