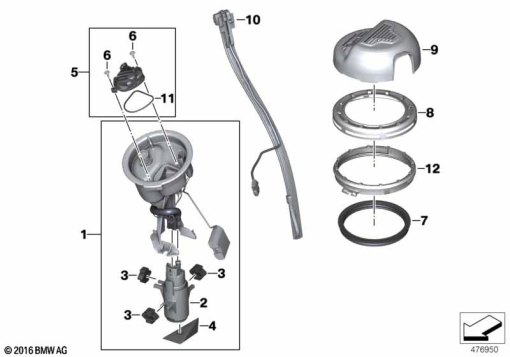

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 14 7 684 348 | FUEL PUMP UNIT WITH LEVER SENSOR | 1 | |
| 1 | 16 11 7 677 883 | GASKET | 1 | |
| 1 | 16 14 7 708 047 | FUEL PUMP ASSY | 1 | |
| 1 | 16 11 7 677 883 | GASKET | 1 | |
| 2 | 16 14 7 680 379 | FUEL PUMP | 1 | |
| 3 | 16 14 1 180 474 | RUBBER MOUNTING | 1 | |
| 4 | 16 14 8 551 342 | STRAINER | 1 | |
| 5 | 16 14 8 523 697 | SET: FUEL PUMP, ELECTRONIC | 1 | |
| 6 | 16 13 7 656 906 | SCREW SELF-TAPPING | 1 | |
| 5 | 16 14 8 523 262 | FUEL PUMP, ELECTRONIC | 1 | |
| 7 | 16 11 7 677 883 | GASKET | 1 | |
| 8 | 16 11 6 760 285 | SCREW CAP | 1 | |
| 9 | 16 11 7 675 682 | COVER | 1 | |
| 10 | 16 14 1 600 132 | FUEL LEVEL SENSOR | 1 | |
| 11 | 16 14 7 722 876 | PREFORMED SEAL | 1 | |
| 10 | 16 14 1 600 132 | FUEL LEVEL SENSOR | 1 | |
| 12 | 16 14 1 182 903 | SUPPORTING RING | 1 |
