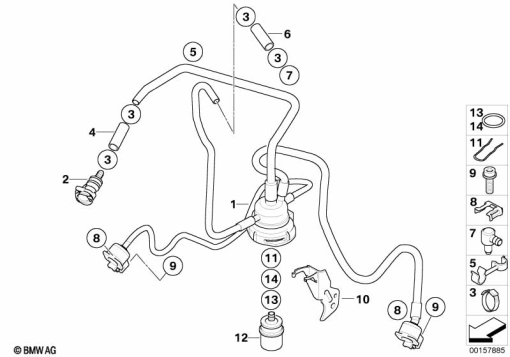

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 53 7 696 034 | FUEL DISTRIBUTOR (from 08/06) | - | |
| 2 | 13 31 7 659 120 | CONNECTING SLEEVE (from 08/06) | - | |
| - | LCD17005V | STEEL QWIK CONNECT-FEMALE | - | |
| 3 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 (from 08/06) | - | |
| 4 | 13 53 7 563 456 | FUEL HOSE - 8X13MMX1000 (meter) (from 08/06) | - | |
| 5 | 13 53 7 677 684 | TANDEM CLAMP - D=8MM/7-8,5MM (from 08/06) | - | |
| 6 | 13 31 7 688 239 | INLET FUEL HOSE - L=63 (from 08/06) | - | |
| 7 | 13 53 7 674 765 | QUICK-RELEASE COUPLING - 90° (from 08/06) | - | |
| 8 | 13 53 1 341 697 | SPRING CLIP (from 08/06) | - | |
| 9 | 07 12 9 903 324 | ISA SCREW - M5X16-A2-70 (from 08/06) | - | |
| 10 | 13 53 7 694 731 | BRACKET, FUEL DISTRIBUTOR (from 08/06) | - | |
| 11 | 13 53 1 341 694 | CLAMPING SPRING (from 08/06) | - | |
| 12 | 13 53 1 465 107 | FUEL PRESSURE REGULATOR - 3,5 BAR (from 08/06) | - | |
| 13 | 13 53 1 341 067 | O-RING - 20X2,5 (from 08/06) | - | |
| 14 | 13 53 1 465 193 | O-RING - 5X1,5 (from 08/06) | - |
