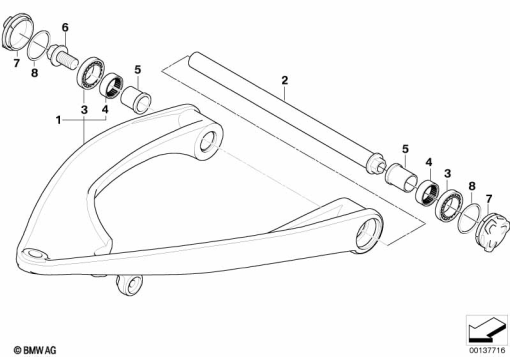

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 680 715 | SILVER TRAILING ARM | - | |
| 2 | 31 42 8 526 447 | AXLE | - | |
| 3 | 31 42 7 665 667 | GROOVED BALL BEARING - 6004 2RS | - | |
| 4 | 31 42 7 665 668 | NEEDLE SLEEVE | - | |
| 5 | 31 42 7 674 014 | NEEDLE BEARING INNER RING | - | |
| 6 | 07 11 9 904 488 | HEX BOLT - M12X20 | - | |
| 7 | 31 42 7 706 048 | COVER FOR TELELEVER, MILLED | - | |
46 51 7 694 153 | COVERING CAPAlternative for position 7 | - | ||
| 8 | 07 11 9 905 268 | O-RING - 39X2 | - |
