R1200GS 05-07 (K25) | Front Suspension

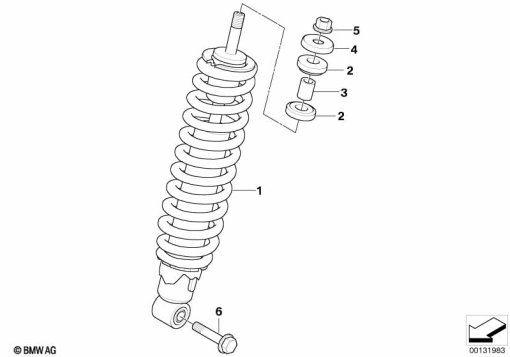

SPRING STRUT, FRONT
Diagram #31_0688 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 529 485 | SPRING STRUT, FRONT | 1 | |
| 2 | 31 42 2 311 994 | BUSH | 1 | |
| 3 | 31 42 7 665 662 | SPACER SLEEVE | 1 | |
| 4 | 07 11 9 904 209 | WASHER - 10-200 ZNS3 | 1 | |
| 5 | 07 11 9 906 226 | HEX NUT - M10X1,25-ZNS3 | 1 | |
| 6 | 31 42 7 686 733 | FIT BOLT - M10X1,25X50 | 1 |
