R1200GS 05-07 (K25) | Frame, Fairing, Cases
TRIM PANEL PARTS - MOUNTING PARTS

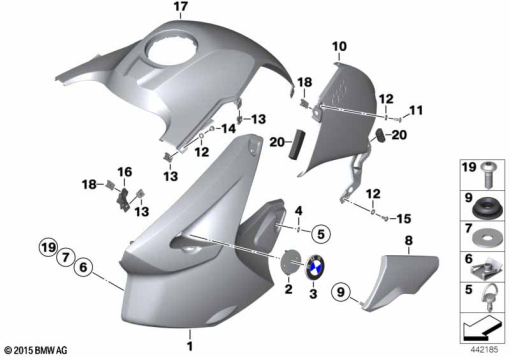

Diagram #46_0841 | 28 parts
100%
Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 667 715 | LATERAL TRIM PANEL LEFT - ROHTEIL / BLANK | - | |
46 63 7 667 716 | LATERAL TRIM PANEL RIGHT - ROHTEIL / BLANKAlternative for position 1 | - | ||
| 2 | 46 63 7 672 095 | PLAQUE HOLDER, LEFT | - | |
46 63 7 672 096 | PLAQUE HOLDER, RIGHTAlternative for position 2 | - | ||
| 3 | 51 14 8 164 924 | BADGE - D=58MM | - | |
| 4 | 51 71 8 216 181 | CIRCLIP | - | |
| 5 | 46 63 7 676 995 | QUICK-RELEASE SCREW | - | |
| 6 | 61 13 1 372 033 | BODY NUT - M5 | - | |
| 7 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 8 | 46 63 7 677 515 | SIDE TRIM, BLACK, LEFT | - | |
46 63 7 677 516 | SIDE TRIM, BLACK, RIGHTAlternative for position 8 | - | ||
| 9 | 46 63 1 453 144 | RUBBER GROMMET | - | |
| 10 | 46 63 7 694 534 | TANK TRIM PANEL, RIGHT - ALU NATUR | - | |
46 63 7 727 273 | TANK TRIM PANEL, LEFT - ALU NATURAlternative for position 10 | - | ||
| 11 | 46 63 7 686 286 | FLANGED CAP SCREW - 5X16-A2-80 | - | |
| 12 | 46 61 2 308 594 | WASHER | - | |
| 13 | 46 63 7 658 638 | FLAT NUT - M5 | - | |
| 14 | 46 63 2 325 998 | FLANGED CAP SCREW - M5X16SW (to 10/07) | - | |
07 14 2 758 504 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - ISA M5X16Alternative for position 14 | - | ||
| 15 | 46 63 2 351 658 | FILLISTER HEAD SCREW - M5X14 SW | - | |
| 16 | 46 63 7 673 909 | LEFT TRIM PANEL BRACKET | - | |
46 63 7 673 910 | RIGHT TRIM PANEL BRACKETAlternative for position 16 | - | ||
| 17 | 46 63 7 667 697 | COVERING FUEL TANK, PRIMED | - | |
46 63 7 667 698 | COVERING FUEL TANK - ROHTEIL / BLANKAlternative for position 17 | - | ||
| 18 | 46 63 7 676 994 | C-CLIP NUT | - | |
| 19 | 06 32 7 657 966 | FILLISTER HEAD SCREW - M5X20SI | - | |
| 20 | 46 63 7 677 513 | ROUND CORD - L=20 | - | |
46 63 7 684 337 | EDGE PROTECTION, TANK TRIM PANELAlternative for position 20 | - |
