R1200GS 05-07 (K25) | Frame, Fairing, Cases
CENTER STAND

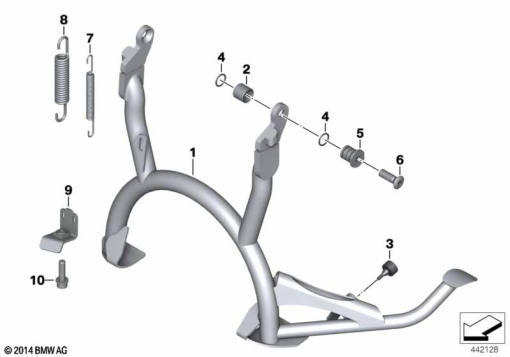

Diagram #46_0843 | 13 parts | 3 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 7 684 948 | CENTER STAND | 1 | |
| 1 | 46 52 7 660 069 | CENTER STAND | 1 | |
| 2 | 46 52 2 331 991 | BUSHING | 1 | |
| 3 | 46 52 7 703 598 | BUMP STOP - H=20 | 1 | |
| 3 | 52 53 7 664 664 | BUMP STOP - H=10 | 1 | |
| 4 | 46 52 2 335 325 | O-RING | 1 | |
| 5 | 46 52 2 331 992 | PIVOT PIN | 1 | |
| 6 | 07 11 9 906 134 | COUNTERSUNK HEAD SCREW - M10X30-8.8-MK | 1 | |
| 7 | 46 52 7 664 706 | TENSION SPRING - D=10 | 1 | |
| 8 | 46 53 7 666 528 | TENSION SPRING - D=18 | 1 | |
| 8 | 46 52 7 699 005 | TENSION SPRING - D=15 | 1 | |
| 9 | 46 52 7 683 149 | SUPPORT | 1 | |
| 10 | 07 12 9 904 835 | ISA SCREW - M8X30-U1-8.8 | 1 |
