R1200GS 05-07 (K25) | Frame, Fairing, Cases

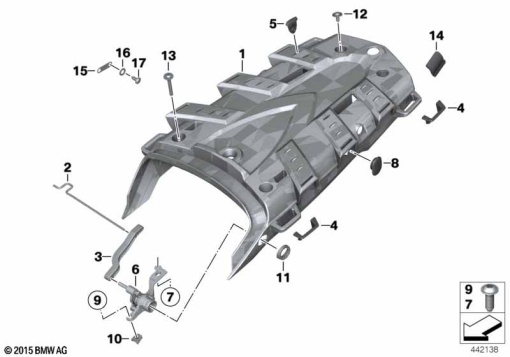

REAR SUPPORT, SINGLE PIECE
Diagram #46_1035 | 34 parts | 3 available in shop
100%
Parts List (34)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 7 698 454 | REAR SUPPORT, SINGLE PIECE - ROHTEIL / BLANK (to 06/09) | 1 | |
| 18 | 46 54 7 698 442 | RUBBER BUFFER (to 06/09) | 1 | |
| 2 | 46 54 7 698 443 | SUPPORT (to 06/09) | 1 | |
| 1 | 46 54 7 698 445 | LOCKING BRACKET (to 06/09) | 1 | |
| 2 | 46 54 7 698 465 | BUMP STOP, LEFT (to 06/09) | 1 | |
| 2 | 46 54 7 698 466 | BUMP STOP, RIGHT (to 06/09) | 1 | |
| 2 | 46 54 7 704 597 | BEARING COVER (to 06/09) | 1 | |
| 1 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 (to 06/09) | 1 | |
| 1 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 1 | 46 54 7 698 454 | REAR SUPPORT, SINGLE PIECE - ROHTEIL / BLANK (from 06/09) | 1 | |
| 2 | 46 54 7 698 445 | LOCKING BRACKET | 1 | |
| – | 46 54 7 704 597 | BEARING COVER | 1 | |
| – | 65 75 8 235 255 | TORX-BOLT FOR PLASTIC MATERIAL - ISA L=10MM | 1 | |
| 3 | 46 54 7 675 040 | 0.03 | 1 | |
| 4 | 46 54 7 698 465 | BUMP STOP, LEFT | 1 | |
| 4 | 46 54 7 698 466 | BUMP STOP, RIGHT | 1 | |
| 5 | 46 54 7 698 442 | RUBBER BUFFER | 1 | |
| 1 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 6 | 51 25 7 675 106 | LOCK | 1 | |
| 7 | 07 12 9 907 533 | SCREW - TS4X10MM | 1 | |
| 8 | 46 54 7 685 441 | COVERING CAP | 1 | |
| 9 | 06 32 7 651 211 | FILLISTER HEAD SCREW - M5X12-A2-80 | 1 | |
| 10 | 46 63 7 658 638 | FLAT NUT - M5 | 1 | |
| 11 | 51 25 7 675 107 | COVERING CAP | 1 | |
| 12 | 46 54 7 699 645 | FLANGED CAP SCREW - M6X16 | 1 | |
| 13 | 46 54 7 699 644 | FLANGED CAP SCREW - M6X50 | 1 | |
| 13 | 07 12 9 908 451 | FILLISTER-HEAD SCREW - M6X50-8.8-MK | 1 | |
| 2 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 14 | 46 54 7 698 443 | SUPPORT | 1 | |
| 15 | 46 54 7 704 597 | BEARING COVER | 1 | |
| 16 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 17 | 07 14 9 126 185 | SCREW FOR PLASTIC - 4X10,5 | 1 | |
| 2 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 16 | 07 11 9 936 426 | FLAT WASHER | 1 |
