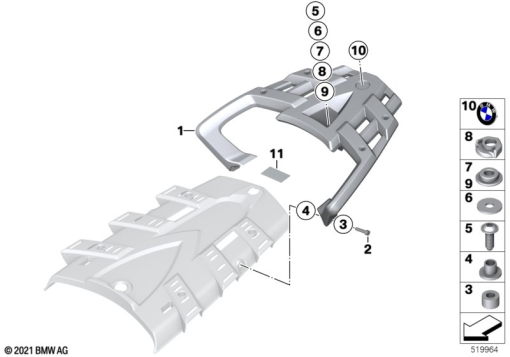

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 7 667 674 | LUGGAGE GRID - ROHTEIL / BLANK | - | |
| 2 | 46 54 7 705 577 | OVAL HEAD SCREW - M6X35 MK | - | |
| 3 | 46 54 7 688 015 | BUSH - DI=7 L=9,8 | - | |
| 4 | 46 63 7 684 768 | BUSH - DI=7 L=8.5 | - | |
| 5 | 46 54 7 684 770 | ISA SCREW - M6X35 | - | |
| 6 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 6 | - | ||
| 7 | 46 54 7 673 774 | BUSH - DI=20 DA=30 | - | |
| 8 | 46 54 7 684 701 | CLAMPING | - | |
| 9 | 46 54 7 673 777 | BUSH - DI=8 L=5,2 | - | |
| 10 | 51 14 2 328 447 | BADGE - D=27MM | - | |
| 11 | 46 54 7 685 249 | FOIL LEFT | - | |
46 54 7 685 250 | FOIL RIGHTAlternative for position 11 | - | ||
46 54 7 685 251 | FILM CENTERAlternative for position 11 | - |
