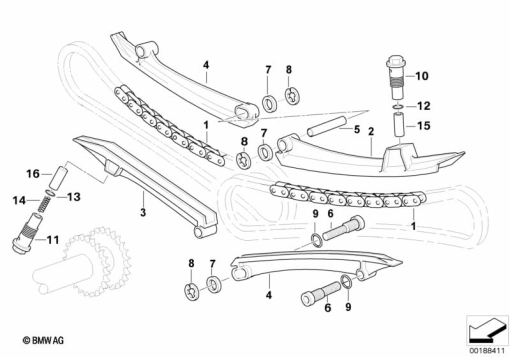

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 7 694 427 | TIMING CHAIN | - | |
| 2 | 11 31 1 341 295 | LEFT CHAIN TENSIONER | - | |
| 3 | 11 31 1 341 296 | RIGHT CHAIN TENSIONER | - | |
| 4 | 11 31 1 341 291 | SLIDE RAIL | - | |
| 5 | 11 11 1 340 003 | BOLT - L=48 | - | |
11 31 7 668 224 | BOLT - L=76,4Alternative for position 5 | - | ||
| 6 | 11 31 7 685 312 | ISA SCREW - M10X50 | - | |
11 31 7 685 312 | ISA SCREW - M10X50Alternative for position 6 | - | ||
| 7 | 11 31 1 460 923 | SHIM - 8,2X14X1,2 | - | |
| 8 | 07 11 9 932 841 | CIRCLIP - D=6MM | - | |
| 9 | 07 11 9 900 244 | GASKET RING - A10X15-AL | - | |
| 10 | 11 31 7 688 629 | CYLINDER F CHAIN TENSIONER, LEFT | - | |
| - | 11 31 7 656 922 | PISTON LEFT | - | |
| 11 | 11 31 8 530 331 | CYLINDER F CHAIN TENSIONER, RIGHT | - | |
| 12 | 07 11 9 963 308 | GASKET RING - A18X22-CU | - | |
| 13 | 07 11 9 963 342 | GASKET RING - A20X24-CU | - | |
| 14 | 11 31 1 341 015 | SPRING | - | |
| 15 | 11 31 7 656 922 | PISTON LEFT | - | |
| - | 11 31 7 688 629 | CYLINDER F CHAIN TENSIONER, LEFT | - | |
| 16 | 11 31 1 340 742 | PISTON RIGHT | - |
