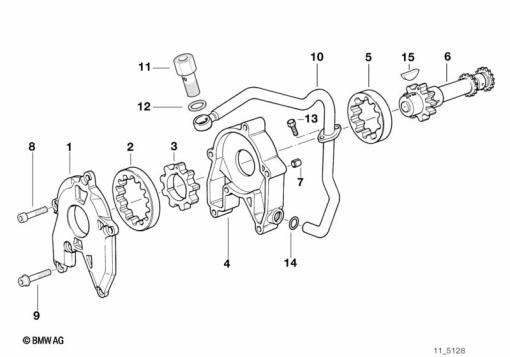

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 7 715 119 | OIL PUMP COVER | - | |
| 2 | 11 41 1 342 630 | EXTERIOR ROTOR, COOLING OIL | - | |
| 3 | 11 41 7 669 625 | INTERIOR ROTOR, COOLING OIL | - | |
| 4 | 11 41 7 716 558 | OIL PUMP HOUSING | - | |
| 5 | 11 41 1 340 137 | EXTERIOR ROTOR | - | |
| 6 | 11 31 7 669 628 | AUXILIARY SHAFT (to 10/07) | - | |
11 31 7 710 842 | AUXILIARY SHAFT - Z=17 (from 10/07)Alternative for position 6 | - | ||
| 7 | 11 12 1 726 242 | DOWEL - D=8,5X9MM | - | |
| 8 | 11 41 7 669 855 | ISA SCREW - M6X40 | - | |
| 9 | 11 41 7 669 856 | ISA SCREW - M6X45 | - | |
| 10 | 11 51 7 672 661 | COOLING OIL LINE | - | |
| 11 | 11 51 1 342 248 | VENT SCREW | - | |
| 12 | 07 11 9 963 200 | GASKET RING - A14X18-AL | - | |
| 13 | 07 12 9 904 963 | ISA SCREW - M6X16 | - | |
| 14 | 11 51 1 340 738 | O-RING | - | |
| 15 | 07 11 9 951 430 | WOODRUFF KEY - 3X3,7 | - |
