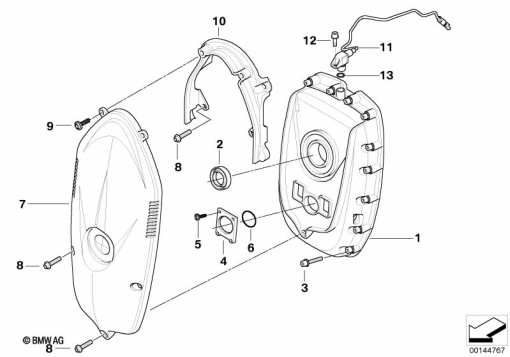

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 7 713 872 | GEAR BOX COVER, SILVER (to 10/07) | - | |
11 14 7 719 508 | GEAR BOX COVER, SILVER (from 10/07)Alternative for position 1 | - | ||
| 2 | 11 11 8 528 387 | SHAFT SEAL - 36X50X7 | - | |
| 3 | 07 12 9 905 537 | ISA SCREW WITH WASHER - M6X30-U0-8.8 | - | |
| 4 | 11 14 7 674 083 | COVER | - | |
| 5 | 07 12 9 903 979 | TORX SCREW - M6X20-U1-8.8 | - | |
| 6 | 11 14 7 665 328 | O-RING - 48X3 | - | |
| 7 | 11 14 7 694 970 | COVERING WITH BADGE | - | |
| 8 | 07 12 9 905 120 | ISA SCREW - M5X16-U1-8.8 | - | |
| 9 | 51 13 7 057 671 | TORX-BOLT FOR PLASTIC MATERIAL - TS5X15 | - | |
| 10 | 11 14 7 690 747 | BELTGUARD | - | |
| 11 | 12 72 7 674 201 | CRANKSHAFT SENSOR | - | |
| 12 | 07 12 9 904 819 | TORX-BOLT WITH WASHER - M6X16-8.8-ZNNIV | - | |
| 13 | 12 72 7 694 011 | O-RING - 14X2 | - |
