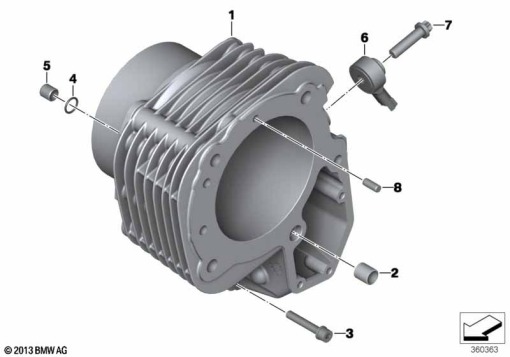

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 673 529 | LEFT CYLINDER, SILVER - A/B H=80,65 | 1 | |
| 1 | 11 11 7 673 530 | RIGHT CYLINDER, SILVER - A/B H=80,65 | 1 | |
| 2 | 11 12 1 726 241 | DOWEL - D=12,5MM | 1 | |
| 3 | 07 12 9 905 538 | ISA SCREW WITH WASHER - M6X35-ZNNIV SI | 1 | |
| 4 | 11 11 1 342 242 | O-RING - 10,5X1,5 | 1 | |
| 5 | 11 12 1 726 238 | DOWEL - D=10,5MM | 1 | |
| 6 | 11 11 7 664 361 | PING SENSOR | 1 | |
| 7 | 07 12 9 905 026 | ISA SCREW - M8X35 | 1 | |
| 8 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | 1 |
