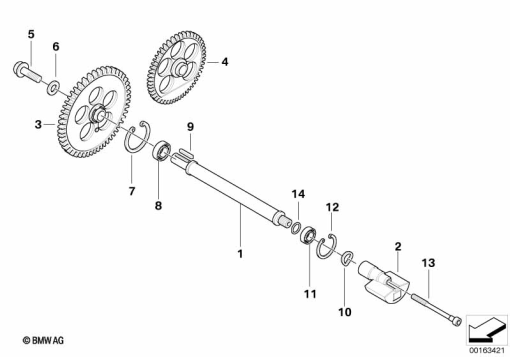

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 27 7 670 338 | COMPENSATING SHAFT (to 10/07) | - | |
11 27 7 710 841 | COMPENSATING SHAFT (from 10/07)Alternative for position 1 | - | ||
| 2 | 11 27 7 670 337 | BALANCE WEIGHT (to 10/07) | - | |
11 27 7 702 622 | BALANCE WEIGHT (from 10/07)Alternative for position 2 | - | ||
| 3 | 11 27 7 677 329 | IDLER (to 10/07) | - | |
| 4 | 11 27 8 555 195 | GEAR WHEEL - Z=60 | - | |
11 27 8 356 911 | GEAR WHEEL - Z=60Alternative for position 4 | - | ||
| 5 | 07 12 9 903 968 | ASA-BOLT - M8X50-8.8-ZNS3 (to 10/07) | - | |
07 11 9 906 050 | HEX NUT - M12X1,5-10 ZNS3 (from 10/07)Alternative for position 5 | - | ||
| 6 | 11 27 7 672 596 | WASHER - 8.4X30 (to 10/07) | - | |
| 7 | 07 11 9 906 808 | LOCK RING - 47X1,75 (to 10/07) | - | |
| 8 | 11 14 7 665 326 | GROOVED BALL BEARING - 25X47X12 (to 10/07) | - | |
| 9 | 07 11 9 904 538 | PARALLEL KEY (to 10/07) | - | |
07 11 9 951 430 | WOODRUFF KEY - 3X3,7 (from 10/07)Alternative for position 9 | - | ||
| 10 | 11 11 7 685 005 | SHAFT SEAL - 20X37X7 (to 10/07) | - | |
11 11 7 721 848 | SHAFT SEAL - 25X37X6,5 (from 10/07)Alternative for position 10 | - | ||
| 11 | 11 27 7 675 034 | GROOVED BALL BEARING - 20X37X9 | - | |
| 12 | 07 11 9 934 675 | LOCK RING - 37X1,5 | - | |
| 13 | 11 27 7 686 883 | ISA SCREW - M8X70 | - | |
| 14 | 11 36 1 404 409 | O-RING - 12X2 (to 10/07) | - | |
07 11 9 906 988 | O-RING (to 10/07)Alternative for position 14 | - | ||
11 27 7 702 625 | O-RING - 12X1,5 (from 10/07)Alternative for position 14 | - |
