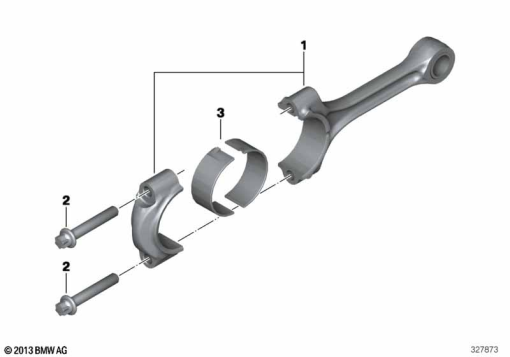

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 24 7 679 317 | CONNECTING ROD - 2XBLUE/KL.1 | - | |
11 24 7 679 318 | CONNECTING ROD - 3XWHITE/KL.2Alternative for position 1 | - | ||
11 24 7 679 319 | CONNECTING ROD - 3XYELLOW/KL.3Alternative for position 1 | - | ||
11 24 7 679 320 | CONNECTING ROD - 1XBLUE/KL.4Alternative for position 1 | - | ||
| 2 | 11 24 7 671 282 | CONNECTING ROD BOLT - M10X1,25 (to 03/06) | - | |
11 24 7 684 644 | CONNECTING ROD BOLT - M10X1Alternative for position 2 | - | ||
| 3 | 11 24 7 700 603 | BEARING SHELL, COVER SIDE, RED | - | |
11 24 7 700 604 | BEARING SHELL, ROD SIDE, BLUEAlternative for position 3 | - | ||
11 24 7 700 605 | BEARING SHELL, COVER SIDE, RED - +0,25Alternative for position 3 | - | ||
11 24 7 700 606 | BEARING SHELL, ROD SIDE, BLUE - +0,25Alternative for position 3 | - |
