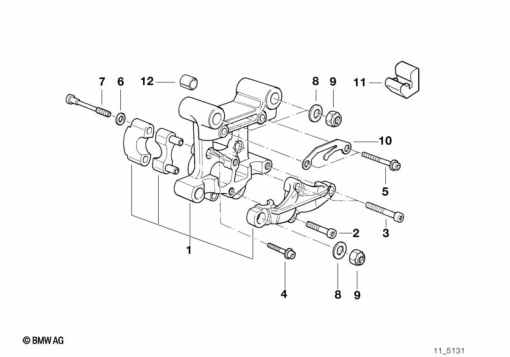

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 33 7 717 441 | LEFT CAMSHAFT SUPPORTING BRACKET | 1 | |
| 1 | 11 33 7 717 442 | RIGHT CAMSHAFT SUPPORTING BRACKET | 1 | |
| 2 | 11 33 1 340 745 | TORX BOLT - M8X30 | 1 | |
| 3 | 11 33 7 713 044 | TORX BOLT - M8X40 | 1 | |
| 4 | 07 12 9 905 537 | ISA SCREW WITH WASHER - M6X30-U0-8.8 | 1 | |
| 5 | 07 12 9 905 890 | ISA SCREW - M6X60-U1-8.8-PH | 1 | |
| 6 | 11 31 1 460 923 | SHIM - 8,2X14X1,2 | 1 | |
| 7 | 11 33 1 340 743 | TORX BOLT - M8X65 | 1 | |
| 8 | 11 12 1 464 026 | WASHER - 10,5X20X3 | 1 | |
| 9 | 11 12 7 650 402 | HEX NUT - M10 | 1 | |
| 10 | 11 33 7 677 901 | CONTACT SPRING | 1 | |
| 12 | 11 12 1 726 241 | DOWEL - D=12,5MM | 1 |
