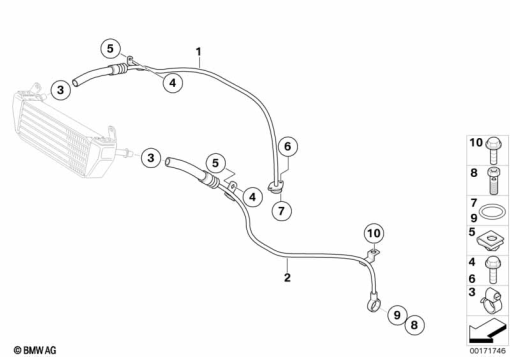

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 22 7 673 669 | OIL COOLING PIPE INLET - SILVER | - | |
| 2 | 17 22 7 673 670 | OIL COOLING PIPE OUTLET - SILVER | - | |
| 3 | 17 22 1 342 708 | CLAMP - FBS 19/12 | - | |
| 4 | 46 63 2 325 998 | FLANGED CAP SCREW - M5X16SW (to 10/07) | - | |
07 14 2 758 504 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - ISA M5X16Alternative for position 4 | - | ||
| 5 | 46 63 7 658 638 | FLAT NUT - M5 | - | |
| 6 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | - | |
| 7 | 17 22 1 342 487 | O-RING - 19X4 | - | |
| 8 | 32 41 6 852 470 | HOLLOW BOLT - M16X28 | - | |
| 9 | 07 11 9 963 253 | GASKET RING - A16X20-CU | - | |
| 10 | 06 32 7 651 203 | FILLISTER HEAD SCREW - M6X12-A2-80 | - |
