R1200GS 05-07 (K25) | Cooling

OIL COOLER

Diagram #17_0469 | 6 parts

100%

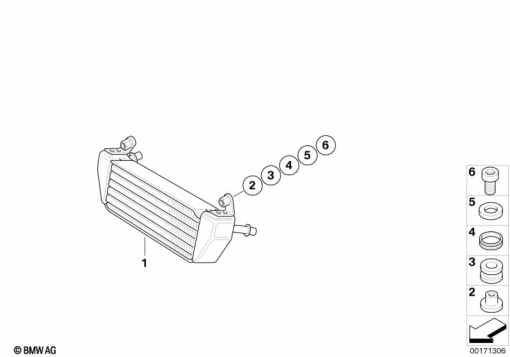

R1200GS 05-07 (K25) OIL COOLER exploded view parts diagram

Parts List (6)

#Part NumberDescriptionQty
1
17 21 7 673 668
OIL COOLER1
2
46 63 7 661 426
BUSH1
3
46 63 1 451 277
RUBBER GROMMET1
4
46 63 1 451 278
INSERT1
5
07 14 6 977 329
WASHER - 6,4X25X1,51
6
07 12 9 905 386
ISA SCREW - M6X30-8.8-ZNNIV1
