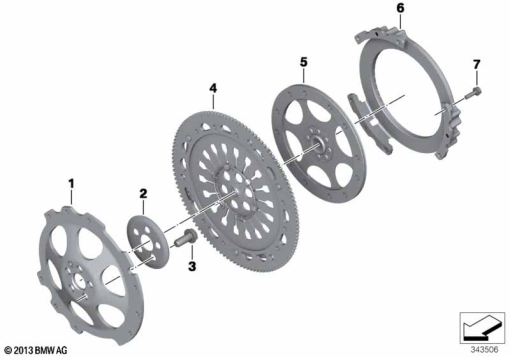

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 7 697 741 | CLUTCH HOUSING | - | |
| - | 21 21 7 697 740 | COVER, FLYWHEEL | - | |
| - | 21 21 7 702 595 | PRESSURE PLATE | - | |
| 2 | 21 21 7 697 739 | REINFORCEMENT RING | - | |
| 3 | 21 21 7 684 771 | COLLAR SCREW - M11X1.5X27 | - | |
| 4 | 21 21 7 702 595 | PRESSURE PLATE | - | |
| - | 21 21 7 697 741 | CLUTCH HOUSING | - | |
| - | 21 21 7 702 596 | PUSH ROD, SPHERICAL | - | |
| 5 | 21 21 7 697 737 | CLUTCH PLATE | - | |
CLA02600 | CLUTCH PLATEAlternative for position 5 | - | ||
CLA97737A | OIL-RESIST CLT PLT R1200 04->Alternative for position 5 | - | ||
| 6 | 21 21 7 697 740 | COVER, FLYWHEEL | - | |
| - | 21 21 7 697 741 | CLUTCH HOUSING | - | |
| 7 | 21 21 2 332 469 | INNER HEX BOLT - M6X20 | - |
