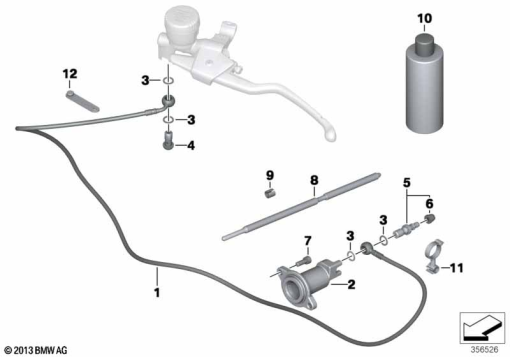

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 52 7 675 102 | CLUTCH CABLE, INPUT/OUTPUT CYLINDER | - | |
| 2 | 21 52 7 724 542 | CLUTCH SLAVE CYLINDER - D=24 | - | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 4 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 5 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 6 | 34 21 2 314 001 | 34 21 2 314 001 | - | |
| 7 | 23 00 2 332 975 | FILLISTER-HEAD SCREW - M 6X18 | - | |
| 8 | 21 52 7 664 197 | PUSH ROD, ROUNDED (to 04/06) | - | |
21 21 7 702 596 | PUSH ROD, SPHERICAL (from 04/06)Alternative for position 8 | - | ||
| 9 | 23 21 1 230 440 | FELTRING | - | |
| 10 | 21 52 2 455 540 | TRANSMISSION OIL HYSPIN V10 - 250 ML | - | |
| 11 | 16 13 1 465 119 | HOSE CLAMP | - |
