R1200GS 05-07 (K25) | Accessories

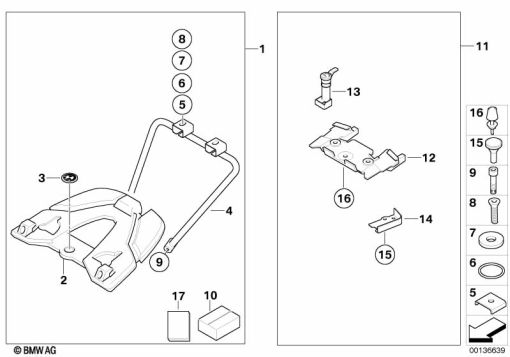

SET, TOP CASE CARRIERS, VARIABLE
Diagram #77_0017 | 24 parts | 1 available in shop
100%
Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 707 239 | SET: SET,SUPPORTING PLATES F TOPCASE | 1 | |
| 2 | 51 24 7 217 793 | TORX BOLT - M6X26 | 1 | |
| – | 71 60 7 707 231 | TOP CASE WITHOUT LOCK CYLINDER | 1 | |
| 2 | 71 60 7 707 240 | ADAPTER PLATE | 1 | |
| 3 | 51 14 2 328 447 | BADGE - D=27MM | 1 | |
| 4 | 71 60 7 687 937 | SUPPORT | 1 | |
| 5 | 46 54 7 688 291 | PLUG-IN NUT - M6 | 1 | |
| 6 | 07 11 9 906 351 | O-RING - 5X1,8 | 1 | |
| 7 | 46 54 7 688 325 | SHIM | 1 | |
| 8 | 07 11 9 901 849 | SCREW | 1 | |
| 8 | 07 11 9 903 594 | COUNTERSUNK HEAD SCREW - M6X20-8.8 | 1 | |
| 9 | 71 60 7 689 889 | ISA SCREW - M6X25-8.8-ZNS3 | 1 | |
| 10 | 71 60 7 693 618 | SET: MOUNTING PARTS F ADAPTER PLATE | 1 | |
| 11 | 46 54 7 688 336 | MOUNTING PARTS SET | 1 | |
| 1 | 71 60 7 707 240 | ADAPTER PLATE | 1 | |
| 1 | 01 29 7 695 773 | INST. INSTR. TOPCASE-ADAPTER PLATE | 1 | |
| 12 | 71 60 7 678 748 | SUSPENSION PLATE | 1 | |
| 13 | 71 60 7 678 749 | SECUIRNG PIN, LEFT | 1 | |
| 13 | 71 60 7 678 750 | SECUIRNG PIN, RIGHT | 1 | |
| 14 | 71 60 7 678 751 | SECUIRNG ELEMENT, LEFT | 1 | |
| 14 | 71 60 7 678 752 | SECUIRNG ELEMENT, RIGHT | 1 | |
| 15 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM | 1 | |
| 16 | 52 53 7 664 664 | BUMP STOP - H=10 | 1 | |
| 17 | 01 29 7 695 773 | INST. INSTR. TOPCASE-ADAPTER PLATE | 1 |
