Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 686 670 | CONNECT.CABLE FOR NAVIGATION SYSTEM - II/III | - | |
| 5 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| - | 01 29 7 687 694 | INST. INSTR., VOLTAGE SUPPLY, NAVI | - | |
| - | 71 60 7 687 693 | CONNECT.CABLE FOR NAVIGATION SYSTEM - I | - | |
| 5 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| - | 01 29 7 687 694 | INST. INSTR., VOLTAGE SUPPLY, NAVI | - | |
| 8 | 71 60 7 669 694 | CONNECTION CABLE, NAVIGATOR HELMET | - |

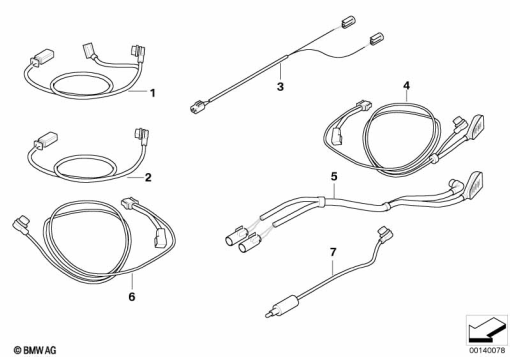

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
