R1200GS 05-07 (K25) | Accessories
SET OF HAND PROTECTORS

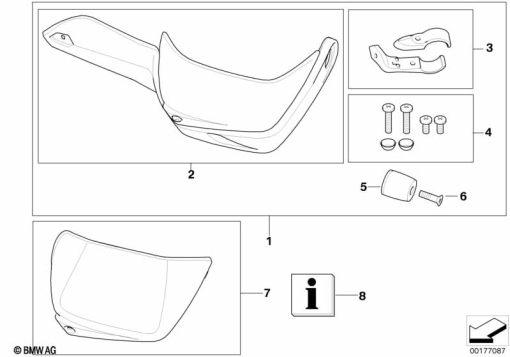

Diagram #77_0090 | 11 parts | 1 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 705 265 | SET: SET OF HAND PROTECTORS | 1 | |
| 2 | 71 60 7 703 157 | HAND PROTECTOR LEFT - BLACK/GR | 1 | |
| 2 | 71 60 7 703 158 | HAND PROTECTOR RIGHT - BLACK/GR | 1 | |
| 3 | 46 63 7 705 267 | SET: SET, CLAMP, HAND GUARD, LEFT | 1 | |
| 3 | 46 63 7 705 268 | SET: SET, CLAMP, HAND GUARD, RIGHT | 1 | |
| 4 | 46 63 7 706 779 | SET: KIT, MOUNTING HARDWARE, HAND GUARDS | 1 | |
| 5 | 32 71 7 673 846 | HANDLEBAR VIBRATION ABSORBER - 300G | 1 | |
| 6 | 32 71 7 717 802 | COUNTERSUNK HEAD SCREW - M12X1,5X80-MKL | 1 | |
| 7 | 71 60 7 705 221 | HAND GUARD UPPER SECTION, LARGE, LEFT - BLACK | 1 | |
| 7 | 71 60 7 705 222 | HAND GUARD UPPER SECTION, LARGE, RIGHT - BLACK | 1 | |
| 8 | 01 29 7 721 923 | INSTALL.INSTRUCTIONS, HAND PROTECTOR | 1 |
