R1200GS 05-07 (K25) | Accessories
RETROFIT KIT, SOCKET

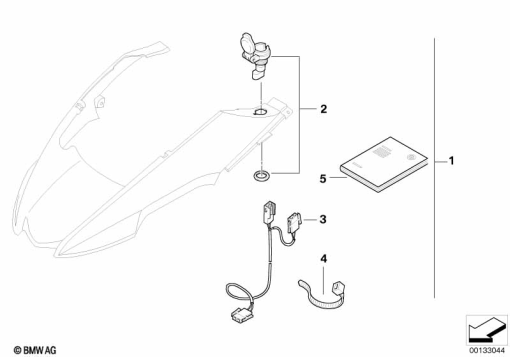

Diagram #77_0211 | 10 parts | 1 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 685 121 | SET: RETROFIT KIT, SOCKET (to 08/06) | 1 | |
| 1 | 71 60 7 699 889 | SET: RETROFIT KIT, SOCKET (from 08/06) | 1 | |
| 2 | 61 13 1 391 630 | PLUG-IN SOCKET (to 08/06) | 1 | |
| 2 | 61 34 7 714 741 | PLUG-IN SOCKET (from 08/06) | 1 | |
| 3 | 71 60 7 685 624 | CONNECTION CABLE, SOCKET (to 08/06) | 1 | |
| 3 | 61 12 7 700 005 | CONNECTION CABLE, SOCKET (from 08/06) | 1 | |
| 4 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 5 | 01 29 7 685 629 | INSTALL.INSTRUCTIONS, PLUG-IN SOCKET - R1200GS (to 08/06) | 1 | |
| 5 | 71 60 7 687 007 | DRILLING TEMPLATE | 1 | |
| 5 | 01 29 7 699 892 | INSTALL.INSTRUCTIONS, PLUG-IN SOCKET - R1200ADV. (from 08/06) | 1 |
