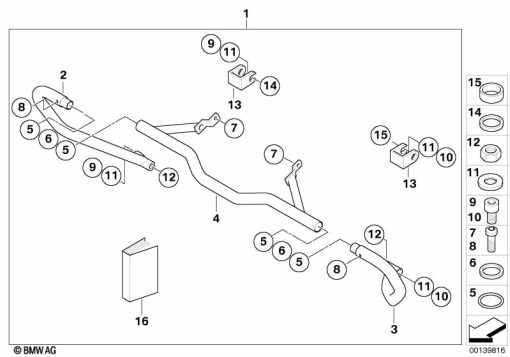

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 677 270 | SET: ENGINE PROTECTION BAR SET | - | |
| - | 71 60 7 693 843 | SET: RETROFIT KIT, SAFETY BAR | - | |
| 2 | 71 60 7 677 850 | RIGHT ENGINE PROTECTION BAR | - | |
| 3 | 71 60 7 677 849 | LEFT ENGINE PROTECTION BAR | - | |
| 4 | 71 60 7 677 851 | ENGINE ROLL-BAR, CENTER | - | |
| 5 | 07 11 9 903 048 | O-RING - 20X1,5 | - | |
| 6 | 71 60 7 678 014 | SPACER RING - 25X2X3 | - | |
| 7 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 8 | 06 32 7 651 204 | FILLISTER HEAD SCREW - M6X16-A2-80 | - | |
| 9 | 07 12 9 905 270 | ISA SCREW - M10X30-8.8-ZNS3 | - | |
| 10 | 07 12 9 903 801 | ISA SCREW - M10X40-8.8-ZNS3 | - | |
| 11 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | - | |
| 12 | 07 11 9 904 036 | HEX NUT - M10 | - | |
| 13 | 71 60 7 691 696 | SPACER HOLDER | - | |
| 14 | 71 60 7 691 697 | SPACER BUSH - DI=10.5 S=5MM | - | |
| 15 | 71 60 7 691 698 | SPACER BUSH - DI=10,5 S=10MM | - | |
| 16 | 01 29 7 694 307 | INSTALL.INSTRUCT., ENGINE PROTECTION BAR | - |
