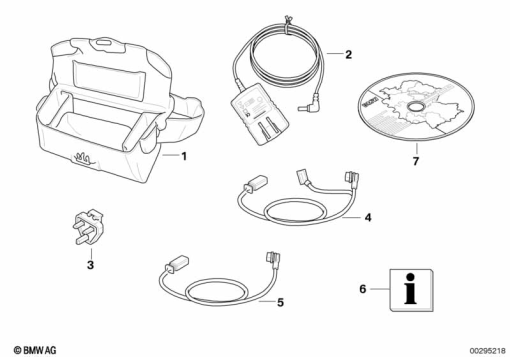

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 683 161 | BAG NAVIGATOR II | - | |
| 2 | 72 60 7 685 841 | CHARGING DEVICE | - | |
| 4 | 71 60 7 686 670 | CONNECT.CABLE FOR NAVIGATION SYSTEM - II/III | - | |
| - | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| - | 01 29 7 687 694 | INST. INSTR., VOLTAGE SUPPLY, NAVI | - | |
| 6 | 01 29 7 685 553 | OPERATING INSTRUCTIONS BATTERY PACK | - | |
| 7 | 01 29 7 699 854 | CD EASY ROUTES ALLGÄU/TIROL/OBERBAYERN | - | |
01 29 7 699 855 | CD EASY ROUTES EIFEL/ARDENNENAlternative for position 7 | - | ||
01 29 7 699 856 | CD EASY ROUTES FRANCONIAAlternative for position 7 | - | ||
72 60 7 710 781 | UPDATE OF DVD ROAD MAP OF EUROPE - V2008Alternative for position 7 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
