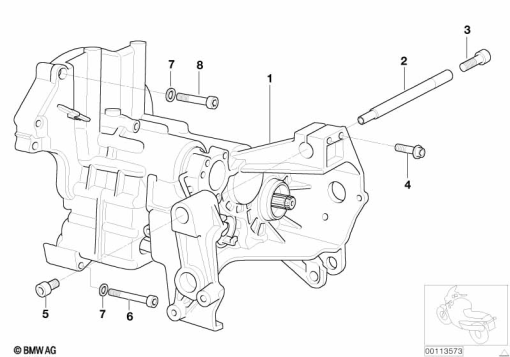

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 7 677 012 | 6-SPEED TRANSM/DEEP TOOTH FORM, NOT 6TH - BLACK | - | |
23 00 7 677 015 | 6-SPEED SPORTS TRNSMS,1ST+6TH GEAR SHORT - BLACKAlternative for position 1 | - | ||
23 00 7 677 011 | 6-SPEED TRANSM/DEEP TOOTH FORM, NOT 6TH - SILVERAlternative for position 1 | - | ||
23 00 7 677 014 | 6-SPEED SPORTS TRNSMS,1ST+6TH GEAR SHORT - SILVERAlternative for position 1 | - | ||
| 2 | 23 71 7 653 810 | CONNECTION PIPE, FRAME | - | |
| 3 | 07 11 9 920 129 | FILLISTER-HEAD SCREW - M10X25 | - | |
| 4 | 23 00 7 654 033 | FILLISTER-HEAD SCREW - M6X40 | - | |
| 5 | 07 11 9 900 426 | FILLISTER-HEAD SCREW - M10X16 | - | |
| 6 | 07 11 9 900 199 | FILLISTER-HEAD SCREW - M8X75-8.8-ZNS3 | - | |
| 7 | 07 11 9 904 826 | Washer | - | |
07 11 9 931 697 | WASHER - 8,4Alternative for position 7 | - | ||
| 8 | 07 12 9 906 694 | ISA SCREW - M8X55-8.8-ZNNIV | - |
